Description

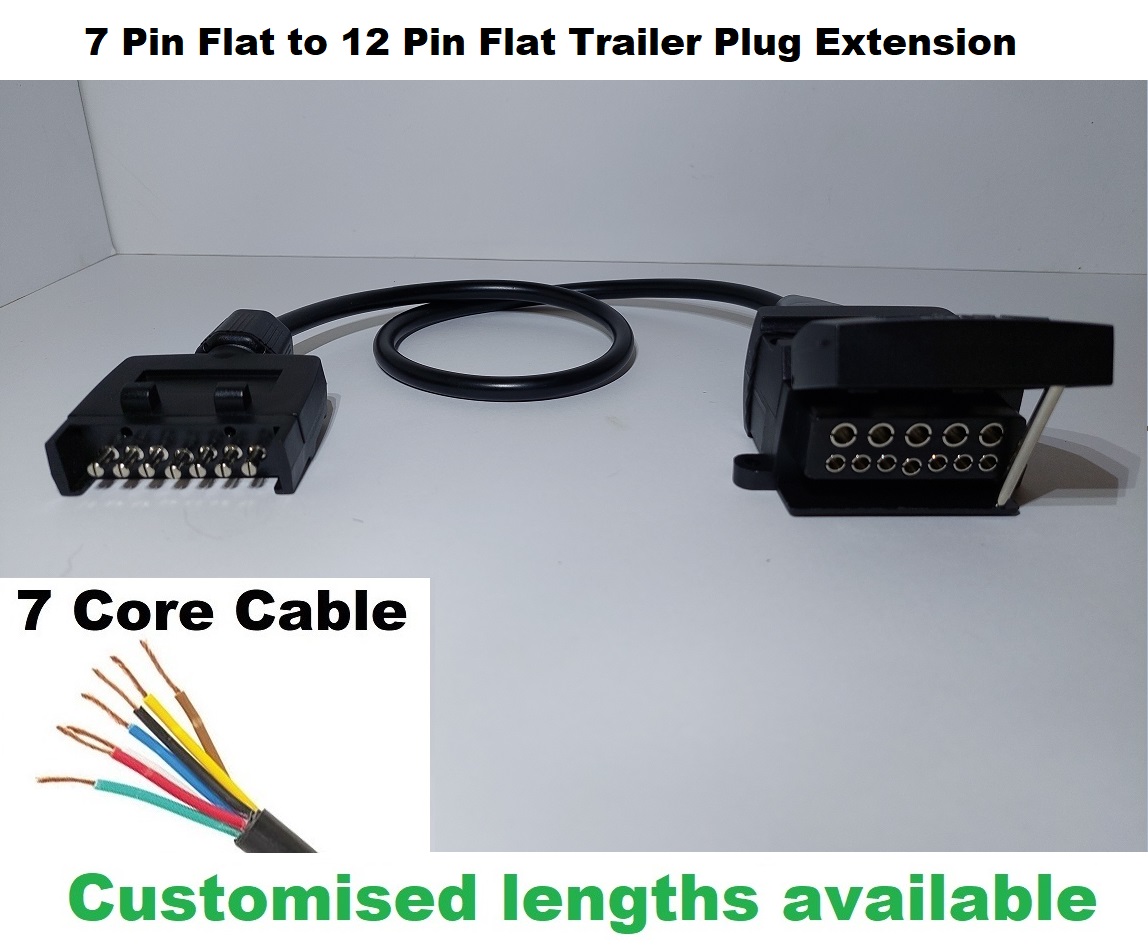

7 Pin to 12 Pin Adaptor
7 Pin Flat Male to 12 Flat Female
Prices start from $59.90

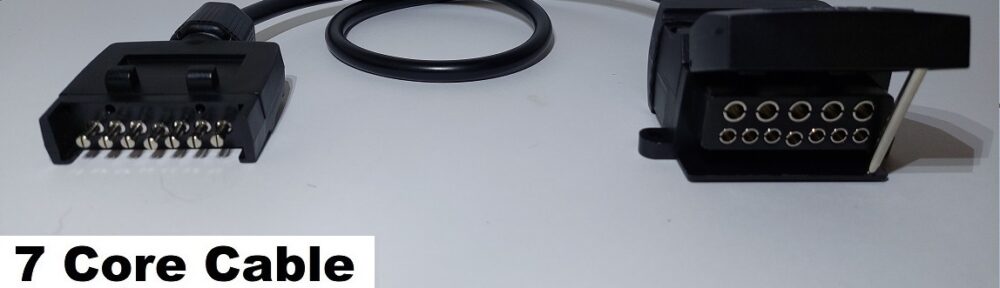

7 core black cable between the 2 trailer plugs. 12 core cable not required with this set up.
Colours as show below.
- Yellow – blinker left
- Red – brake
- Blue – service brakes
- White – ground
- Black – reverse lights
- Brown – parker lights and side markers
- Green – Blinker right
The 12 pin plug serves the purpose of plug matching only to your existing 12 pin plug coming from the trailer lead for a snug fit.
The 4 Auxiliary pins are not connected electrically and don’t need to be.
The 7 remaining pins are connected electrically to the 7 pin flat plug that comes from your vehicles 7 pin plug and the lead will function as is required.
This is what’s required for the lead to work as a 7 pin to 12 pin adaptor.
The 7 pin to 12 pin adaptor comes in the following lengths.
- 0.3meters
- 0.6 meters
- 0.9 meters
- 1.2 meters
- 1.5 meters
- 2 meters
- 3 meters
- 4 meters
- 5 meters
- 6 meters
- 7 meters
- 8 meters
- 9 meters
- 10 meters
Select what length you need to match your existing set up.
Orders are shipped within 2 business days. Tracking will be sent once trailer leads are posted. Contact us if you require any further detail.
